Powermatic OES9138 230V 1-Phase 3 HP Horizontal-Vertical Oscillating Edge Sander Powermatic Model: pwmn1791282
price for vip customer
Price reduced from $5,799.99 to Save 12% $5,124.99

OR PAY WITH

Product Features & specs :

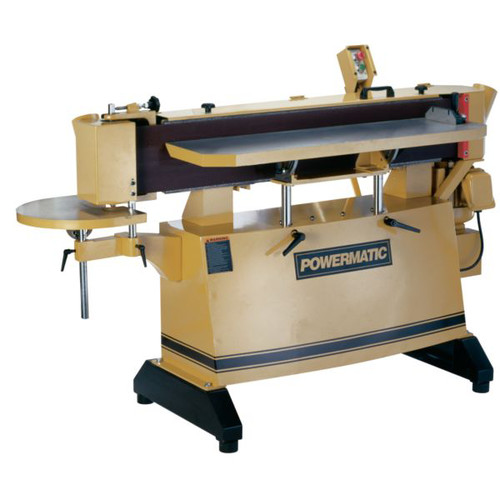

Powermatic OES9138 230V 1-Phase 3 HP Horizontal-Vertical Oscillating Edge Sander

Details
The large 11-3/4 in. x 48 in. table on this OES9138 Oscillating Edge Sander travels a full 8 in. in vertical height to accommodate all workpieces from tall to small. It will also tilt negative 5 degrees and out to positive 45 degrees. The cast-iron platen is a generous 48 in. x 9-1/2 in. and covered with graphite for production sanding, offering super support and cooler running to extend blade life. With 24 oscillations per minute, you can use the entire belt face without burning. A 3 HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
Features:
  • 3 HP motor with 9 in. x 138-3/4 in. abrasive belt
  • Oscillates 24 cycles per minute
  • 9-1/2 in. x 48 in. platen with graphite pad
  • Dual dust collection ports
  • Large 11-3/4 in. x 48 in. front work table with 8 in. vertical travel tilts from negative 5  to positive 45  and includes miter head gauge for angle work
  • Precision-balanced 9 in. diameter drive drum and 4 in. diameter rubber coated idler pulley
  • Rugged bearing-assisted tensioning device
  • Heavy-duty oscillating gearbox and shaft
  • Hinged guard opens for infinite length sanding
What’s Included:
  • OES9138 Horizontal/Vertical Oscillating Edge Sander - 1791282
  • (2) 4 in. Dust Ports
  • Tilting Main and End Tables
  • Platen with Graphite Pad
Power Source
Corded
Belt Length
9 in
Sanding Speed (SPM)
3542
Oscillating Speed (OPM)
24
Amperage
30
UL Safety
Yes
CSA Safety
No
Wifi compatibility
No
Belt Width
138.75 in
Bluetooth Compatibility
No
Motor Phase
1
Horsepower
3
Voltage
230V
Motor Type
Brushed
ETL Safety
No
Length
83 in.
Width
32 in.
Height
50 in.
Weight
800 lbs.
Warranty Term
1 Year

Reviews :

5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Would you recommend this product?
Yes (1)
Pros
Powerful (1)
Best Uses
Frequent Use (1)
Would you recommend this product?
Yes
Pros
Powerful
Best Uses
Frequent Use
Hats off to the designer
Well made with easy adjustments. Great design. Only complaint is who ever assembled it could have done it with a little more pride and attention to detail.
December 15, 2012

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question and 3 answers
could a three quarter inch thick by five inch wide by six foot long board be sanded on the face and then the edge.
Ramona on Jan 1, 2014
BEST ANSWER: Yes, all you have to do is unlock the cover on the dust collection end and run your board out past the end of the sander on the right side of the machine.
