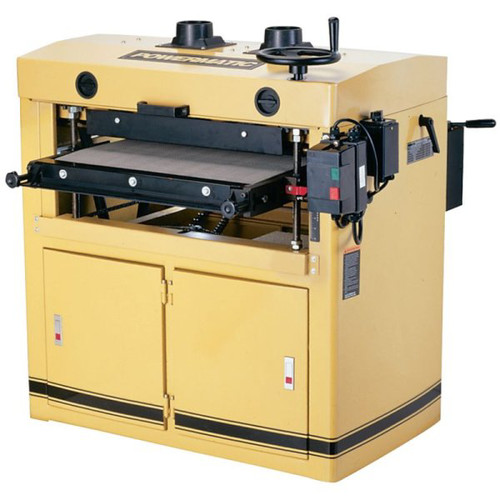

Powermatic DDS-225 230V 25 in. 1-Phase 5-Horsepower Dual Drum Sander

Powermatic Model: pwmn1791290
ratings        (1) Write A Review
$4,399.99
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Powermatic DDS-225 230V 25 in. 1-Phase 5-Horsepower Dual Drum Sander Powermatic Model: pwmn1791290
price for vip customer
$4,399.99

OR PAY WITH

Product Features & specs :

Powermatic DDS-225 230V 25 in. 1-Phase 5-Horsepower Dual Drum Sander

Details
Finally, a production class dual drum sander that is loaded with features. The DDS-225 Dual Drum Sander features a 5 HP motor for plenty of power. The dual steel drums have a hard durometer rubber coating to assure a flat, mar-free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast-iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4 HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 10 surface ft. per minute. The heavy steel cabinet provides years of vibration-free sanding with plenty of storage space underneath.
Features:
  • 5 HP TEFC motor
  • Independently adjustable rear drum for fine tuning
  • Hard durometer rubber coating on steel drums provides a flat and smooth finish
  • Two-speed gearbox for a wide range of sanding projects
  • Full-size cast-iron table for solid support
  • Forward and reverse poly conveyor belt grips stock evenly
  • Dual dust ports with directional baffles for more efficient dust removal
What’s Included:
  • DDS-225 25 in. Dual Drum Sander - 1791290
  • Two-Speed Gearbox
  • Dual 4 in. Dust Ports
  • Sandpaper on Drums
  • Tool Kit
Power Source
Corded
Board Width (Min.)
25 in
PreWired Voltage
220V
Amperage
40
UL Safety
No
Drum Speed (RPM)
1700
Board Thickness (Min.)
1/32 in
Wifi compatibility
No
Conveyor Speed (FPM)
8 - 12
Bluetooth Compatibility
No
Motor Type
Brushed
Board Length (Min.)
9 in
Drum Length
25 in
Board Thickness (Max.)
5-1/4 in
CSA Safety
Yes
Dust Port Size
4 in
Conveyor Motor
1/4 HP
Motor Phase
1
Horsepower
5
Voltage
230V
Drum Diameter
6 in
ETL Safety
No
Length
43 in.
Width
43 in.
Height
44 in.
Weight
730 lbs.
Warranty Term
5 Year

Reviews :

5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Would you recommend this product?
Yes (1)
Pros
Powerful (1)
Cons
Heavy (1)
Would you recommend this product?
Yes
Pros
Powerful
Cons
Heavy
You can tell quality right off the bat!
Great for making raised panel doors, both the styles and the rails and the panels. Save alot of time sanding by hand when all your wood is the same thickness.I wish I had this tool ten years ago.It need some thing built into it for lifting or moving the machine around, but it will take a man and a boy!
December 20, 2011

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!

Warranty:

Powermatic 5 Year Warranty


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


Five Year Warranty for Non-Industrial Tools
(Vertical Panel Saws, Bandsaws, Jointers, Planers, Planer/Molder, Dust Collection, Disc Sanders, Edge Sanders, Drum Sanders, Shapers, Drill Presses, Mortisers, Dovetailers)


WHAT IS COVERED

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.


WHO IS COVERED

This warranty covers only the initial purchaser of the product.


WHAT IS THE PERIOD OF COVERAGE

The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.


WHAT IS NOT COVERED

The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.


HOW TO GET SERVICE

The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.


You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.


LIMITATIONS ON THIS WARRANTY

WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
