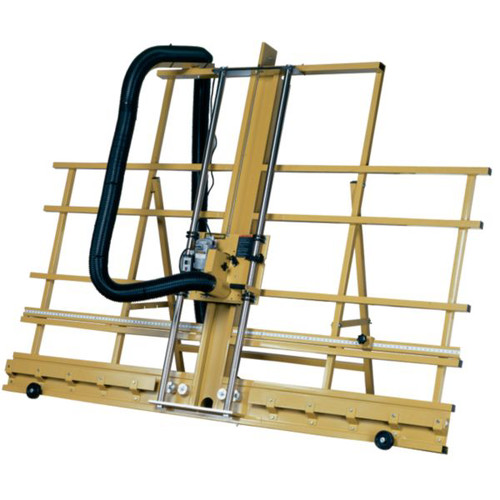

Powermatic 511 8 in. 1-Phase 3-Horsepower Vertical Panel Saw

Powermatic Model: pwmn1510007
ratings        (1) Write A Review
$5,499.99
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

Powermatic 511 8 in. 1-Phase 3-Horsepower Vertical Panel Saw Powermatic Model: pwmn1510007
price for vip customer
$5,499.99

OR PAY WITH

Product Features & specs :

Powermatic 511 8 in. 1-Phase 3-Horsepower Vertical Panel Saw

Details
If you work with sheet goods, this 511 Vertical Panel Saw has plenty of power for the most demanding cuts. The carriage assembly is designed with eight unique roller bearings, allowing it to glide effortlessly along the stainless steel rails. This Vertical Panel Saw features a powerful 3 HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90 degree cuts every time. This saw will handle panels up to 5 ft. tall. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and the rear side of the panel.
Features:
  • Stainless steel guide tubes with eight roller bearing guides
  • Dual 4 in. dust ports with nylon brush surrounding the blade
  • True counterweight system
  • Solid aluminum rollers with outside support brackets
  • Durable casters
  • 3 HP worm-drive saw motor rotates in carriage
  • Heavy-duty welded one-piece steel frame
What’s Included:
  • 511 8 in. Vertical Panel Saw - 1510007
Power Source
Corded
Amperage
13
Wifi compatibility
No
Blade Diameter
8 in
Bluetooth Compatibility
No
Motor Phase
1
Cross Cut Capacity
62 in
Horsepower
3
Motor Type
Brushed
Voltage
120V
Material Thickness (Max.)
1-1/2 in
Arbor Size
5/8 in
Length
120 in.
Width
39 in.
Height
90 in.
Weight
535 lbs.
Warranty Term
5 Year

Reviews :

5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Would you recommend this product?
Yes (1)
Pros
Easy To Use (1)
Powerful (1)
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Well made Vertical Panel Saw
This saw was a great addition to my workshop and allows me to process Plywood and sheet good easily and quickly and precisely
March 16, 2011

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 5 answers
What are the overall dimensions and required clearances for Shop space planning purposes? LxWxH?
Jack on Jan 21, 2016
BEST ANSWER: The dimensions are 120 x 38 x 86 inches.
Does this saw offer a router combination?
Rick on Mar 7, 2016
BEST ANSWER: A router combination is not currently available with this saw
What are the overall dimensions and required clearances for Shop space planning purposes? LxWxH?
Jack on Jan 21, 2016
BEST ANSWER: Per the manual for the Powermatic 1510007 Panel Saw, the specifications for the footprint of the saw are 120" L x 39" W x 90" H. You can review the manual for this unit via this link. It has some very detailed information and great illustrations.
http://content.powermatic.com/assets/manuals/1510007_man_EN.pdf
Is this saw any good for cabinet makers. is it accurate and does the saw splinter the veneer on plywood, such as Maple,Alder, Mahogany? Or is this saw a lumber mill or Home depot quality.
Thank you for the input
Rick on Oct 6, 2015
BEST ANSWER: Yes, the Powermatic 1510007 is a good quality saw for cabinet makers.

Warranty:

Powermatic 5 Year Warranty


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


Five Year Warranty for Non-Industrial Tools
(Vertical Panel Saws, Bandsaws, Jointers, Planers, Planer/Molder, Dust Collection, Disc Sanders, Edge Sanders, Drum Sanders, Shapers, Drill Presses, Mortisers, Dovetailers)


WHAT IS COVERED

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.


WHO IS COVERED

This warranty covers only the initial purchaser of the product.


WHAT IS THE PERIOD OF COVERAGE

The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.


WHAT IS NOT COVERED

The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.


HOW TO GET SERVICE

The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.


You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.


LIMITATIONS ON THIS WARRANTY

WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
