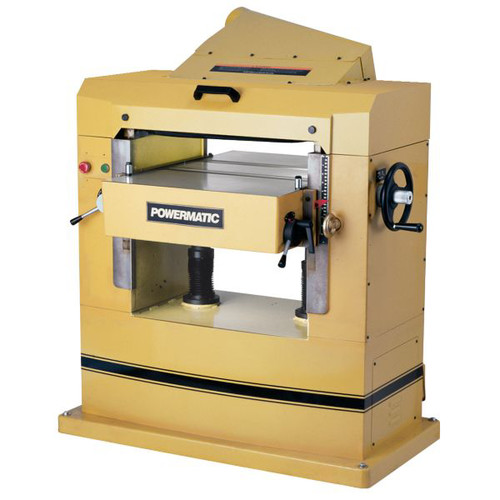

Powermatic 1791261 201 22 in. 1-Phase 7-1/2-Horsepower 230V Planer

Powermatic Model: pwmn1791261
ratings        (0) Write The First Review
$6,399.99
See More
See Less
free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Powermatic 1791261 201 22 in. 1-Phase 7-1/2-Horsepower 230V Planer Powermatic Model: pwmn1791261
price for vip customer
$6,399.99

OR PAY WITH

Product Features & specs :

Powermatic 1791261 201 22 in. 1-Phase 7-1/2-Horsepower 230V Planer

Details
At 1,350 lb., this heavy-duty cast-iron 201 Planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives. The hood comes standard with a 5 in. dust port for easy attachment to any dust collection system. The cutterhead is complete with four high-speed steel knives and turns at 4,800 RPM, producing 19200 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. At 7-1/2 HP, this planer is perfect for the small to medium shop with continuous planing requirements.
Features:
  • All cast-iron construction
  • Two speeds: 20 FPM and 30 FPM
  • Segmented infeed roller with sectional chip breaker
  • Four-knife head with a width of 22 in.
  • Roller bearing feed rollers
  • Adjustable bed rollers
  • Heavy cast-iron table travels on two large lead screws
What’s Included:
  • 201 22 in. Planer - 1791261
  • Foot Pads
  • Knife Setting Gauge
  • 5 in. Dust Collection Chute
  • 6mm Wrench
  • 8mm Wrench
  • 10mm Wrench
  • 12mm x 14mm Combination Wrench
  • 22mm x 24mm Combination Wrench
Power Source
Corded
No. of Knives
4
Knife Width
0.88 in
PreWired Voltage
230V
Amperage
50
Knife Thickness
0.13 in
Feed Rate - Planing (FPM)
30
Feed Rate - Moulding (FPM)
20
Wifi compatibility
No
No-Load Speed (CPM)
19200
Material Thickness (Max.)Material Length (Min.)
9-1/4 in, 10 in
Knife Length
22.13 in
Bluetooth Compatibility
No
Cutterhead Speed (RPM)
4800
Motor Phase
1
Horsepower
7.5
Planing Depth (Max.)
3/16 in
Motor Type
Brushed
Voltage
230V/460V
Cutterhead Diameter
3-1/4 in
Bench-Top
No
Planing Width (Max.)
22 in
Dust Port
Yes
Length
50 in.
Width
32.3 in.
Height
50 in.
Weight
1197 lbs.
Warranty Term
5 Year

Reviews :

There are no reviews for this item. Write Review

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!

Warranty:

Powermatic 1 Year Warranty


WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


One Year Warranty for Industrial Products
(Horizontal Panel Saws, Cut Off Saws, Rip Saws, Bandsaws, Jointers, Planers, Oscillating Edge Sanders, Belt Sanders, Shapers, Power Feeders, Mortisers, Dovetailers)


WHAT IS COVERED

This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.


WHO IS COVERED

This warranty covers only the initial purchaser of the product.


WHAT IS THE PERIOD OF COVERAGE

The general POWERMATIC warranty lasts for the time period specified in the product literature of each product.


WHAT IS NOT COVERED

The Five Year Warranty does not cover products used for commercial, industrial or educational purposes. Products with a Five Year Warranty that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.


HOW TO GET SERVICE

The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848. You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.


HOW STATE LAW APPLIES

This warranty gives you specific legal rights; you may also have other rights which vary from state to state.


LIMITATIONS ON THIS WARRANTY

WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
