Milwaukee 3632-21 M12 360-Degree 3-Plane Cordless Laser Kit - Green (4 Ah)

Milwaukee Model: miln3632-21

Want an email when this item is in stock?

Milwaukee 3632-21 M12 360-Degree 3-Plane Cordless Laser Kit - Green (4 Ah) Milwaukee Model: miln3632-21

Product Features & specs :

High-intensity laser beams allow visibility of green lines up to 125 ft. for fast and accurate leveling and alignment

4X Brighter than Red

Laser Green Lines are visible up to 125 feet, making it 4X Brighter than standard red lasers

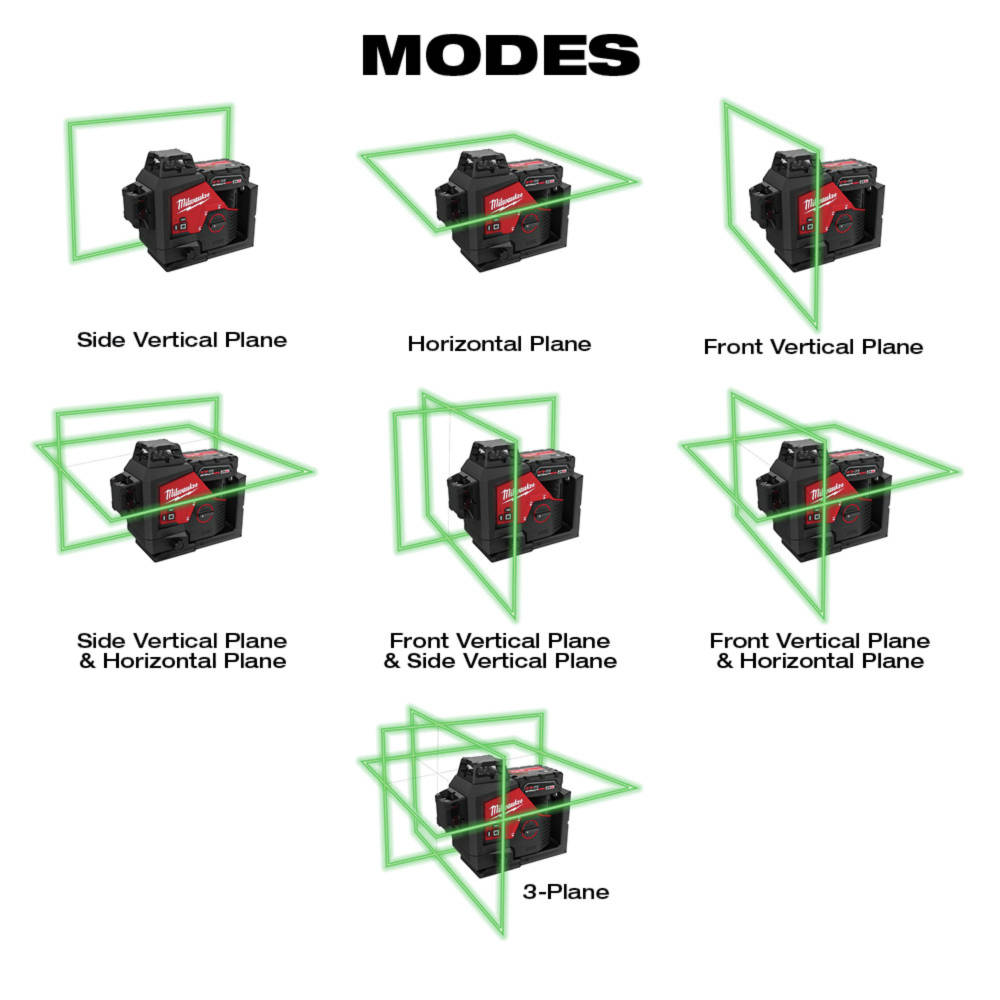

Seven modes to suit any situation

7 Useful Modes

Laser has 7 Modes to accommodate any situation

M12 REDLITHIUM CP3.0 battery delivers all day runtime

Long Duration

1 Charge of M12 REDLITHIUM CP3.0 4 Ah Battery accomplishes more tasks for the whole day

Milwaukee 3632-21 M12 360-Degree 3-Plane Cordless Laser Kit - Green (4 Ah)

The MILWAUKEE M12 Green 360-Degree 3-Plane Laser Kit provides all-day runtime and best visibility in its class. Get 15+ hours of continuous runtime when paired with an M12 REDLITHIUM XC 4 Ah Battery for ultimate productivity. The high-intensity green laser offers superior visibility up to 250 ft. (diameter) for long-range applications. The (3) 360-Degree planes include horizontal and (2) vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing to easily layout large spaces with 1 tool. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The amplified rare earth magnets provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As a part of the industry-leading M12 System, this 360-Degree laser level is compatible with all M12 Batteries.
  • Two vertical and one horizontal high intensity green lasers delivers a 250 ft. diameter visible working range with accuracy of +/- 1/8 in. at 33 feet
  • Extend directional range up to 165 ft. when using range detector
  • M12 REDLITHIUM XC4.0 battery delivers over 15 hours of runtime
  • Integrated mount features rare-earth magnets for secure fastening to metal studs and micro adjust dial to help users align quickly
  • Magnetic mount is compatible with 360-Degree bracket and laser track clip accessories (sold separately)
  • Self-leveling feature with a tilt of +/- 4 degrees
  • Threaded mount is compatible with any tripod with 1/4-20 or 5/8-11 threads
  • IP54 rated for protection against liquids and dust, and impact resistant up to 1m
  • Compatible with all M12 REDLITHIUM batteries
  • 3 Year limited warranty
What’s Included:
  • M12 Green 360-Degree 3-Plane Laser - 3632-20
  • (1) M12 REDLITHIUM XC4.0 Extended Capacity 4 Ah Li-Ion Battery - 48-11-2440
  • M12 Li-Ion Battery Charger - 48-59-2401
  • Responsive Laser Alignment Target - 48-35-1111
  • Blow-Molded Carrying Case
Power Source
Charging Ports
Tripod Thread
1/4 - 20 in/5/8 - 11 in
Wifi compatibility
Batteries Included
Battery Type
Automatic Shut-Off
Battery Life (Approx.)
15 Hours
Protection Class
Case Included
Accuracy Margin (Horizontal)
+/- 1/8 in
Case Type
Blow-Molded Hard Case
Accuracy Margin (Vertical)
+/- 1/8 in
Effective Range (Receiver)
165 ft
Compatible Batteries
Bluetooth Compatibility
+/- 1/8 in
Battery Amp Hour
4 Ah
Accuracy Margin Distance (Horizontal)
33 ft
Laser Color
Battery Warranty
3 Year
Laser Diode
510 - 530 nm
Operating Temperature (F)
14 Degrees Fahrenheit - 104 Degrees Fahrenheit
Laser Class
Class II
Accuracy Margin Distance (Vertical)
33 ft
Effective Range (Visual)
Directional - 125 ft/Diameter - 250 ft
Charger Included
Battery System
7.8 in.
4.12 in.
6.5 in.
2.4 lbs.
Warranty Term
3 Year
