Milwaukee 3522-21 REDLITHIUM USB Rechargeable Green Cross Line and Plumb Points Laser

Milwaukee Model: miln3522-21
$349.00
free shipping
This item qualifies for
FREE SHIPPING
free shipping

Estimates For

alert warning icon

  • Last 5 In Stock

OR PAY WITH

We’re unable to ship this item to: AK HI
Milwaukee 3522-21 REDLITHIUM USB Rechargeable Green Cross Line and Plumb Points Laser Milwaukee Model: miln3522-21
price for vip customer
$349.00

OR PAY WITH

Product Features & specs :

High-intensity laser beams allow visibility of green lines up to 100 ft. for fast and accurate leveling and alignment

Green Laser Beams

Get quick and precise leveling and alignment with its visible laser green lines up to 100 ft.

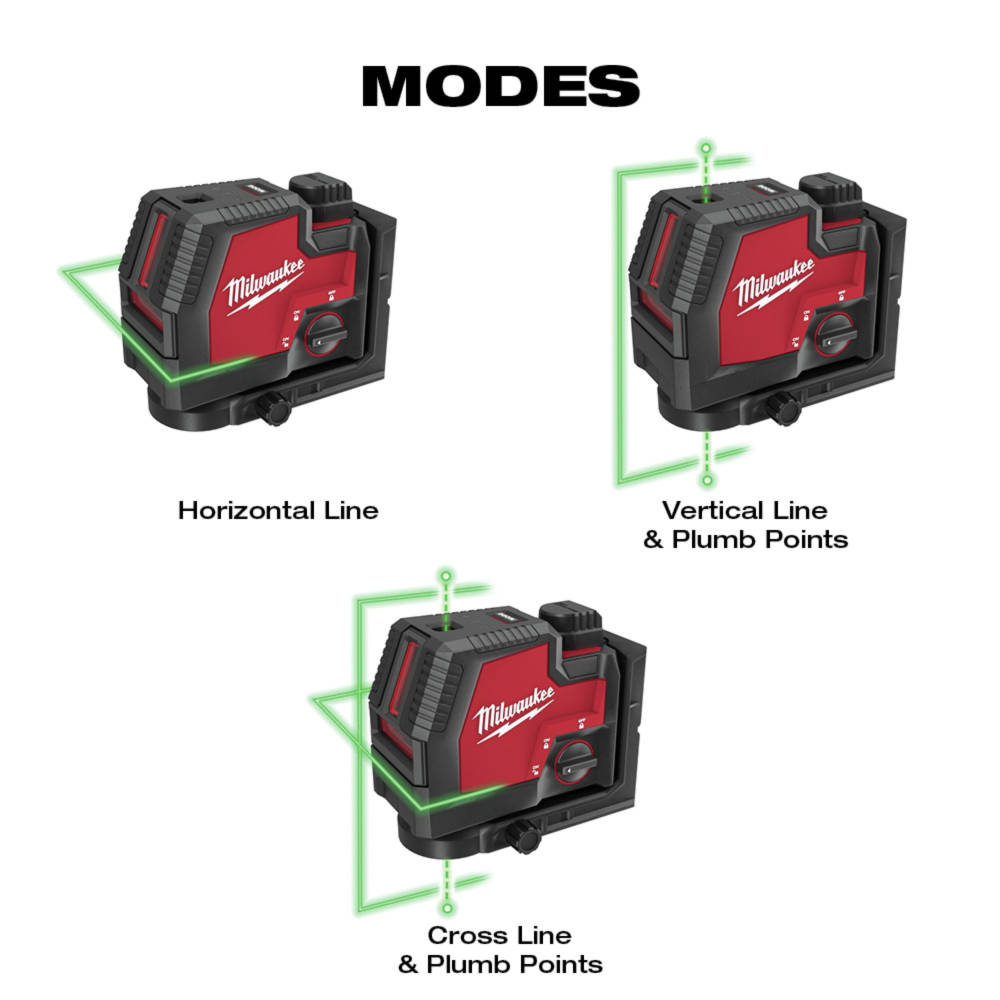

Three modes to suit any situation: Horizontal Line, Vertical Line & Plumb Points, and Cross Line & Plumb Points

Useful Modes

Laser has 3 Modes to accommodate any environment: Horizontal Line, Vertical Line & Plumb Points, and Cross Line & Plumb Points

REDLITHIUM USB 3 Ah battery delivers over 15 hours of runtime

Battery Advantage

Accomplish more when paired with a REDLITHIUM USB 3 Ah Battery for 8 hours runtime

Milwaukee 3522-21 REDLITHIUM USB Rechargeable Green Cross Line and Plumb Points Laser

Details
The MILWAUKEE USB Rechargeable Green Cross Line and Plumb Points Laser is powered by REDLITHIUM USB, delivering all-day runtime and uncompromised visibility. The high-intensity green beams keep the lines and plumb points visible up to 100 ft. for fast, accurate leveling and alignment. The integrated magnetic bracket features micro control that pivots on point for faster set-up and point to point alignment at long distances. This cross line laser with plumb points features amplified rare earth magnets provide a strong hold onto metal surfaces with integrated screw and nail hang holes that make setup easy and efficient in any environment. Charge the REDLITHIUM USB Battery inside the laser via Micro USB or swap it out with additional REDLITHIUM USB Batteries for virtually no downtime. The Milwaukee USB Rechargeable Green Cross Line and Plumb Points Laser is covered by a two-year warranty.
Features:
  • High intensity green laser delivers up to 100 ft. of visible working range with accuracy of +/- 1/8 in. at 33 feet
  • Extend range up to 165 ft. when using range detector (sold separately)
  • REDLITHIUM USB 3 Ah battery delivers over 8 hours of runtime
  • Integrated mount features rare-earth magnets for secure fastening to metal studs and micro adjust dial to help users align quickly
  • Included floor mount raises laser 2 in. for plumb point access
  • Magnetic mount is compatible with 360-Degree bracket and laser track clip accessories (sold separately)
  • Self-leveling feature with a tilt of +/- 4 degrees
  • Threaded mount is compatible with any tripod with a 1/4-20 thread
  • IP54 rated for protection against liquids and dust, and impact resistant up to 1m
  • REDLITHIUM USB battery can be charged internally with included micro-USB cable, or removed and replaced with a fresh battery for virtually no downtime
  • Compatible with all REDLITHIUM USB batteries
  • 2 Year limited warranty
What’s Included:
  • REDLITHIUM USB Rechargeable Green Cross Line and Plumb Points Laser - 3522-20
  • (1) REDLITHIUM USB Rechargeable 3 Ah Li-Ion Battery - 48-11-2131
  • 3 ft. Micro-USB Cable and 2.1A Wall Charger - 48-59-1202
  • Floor Mount
  • Blow-Molded Carrying Case
Power Source
Cordless
Charging Ports
Micro-USB
Wifi compatibility
No
Batteries Included
1
Battery Type
Li-Ion
Accuracy Margin (Horizontal)
+/- 1/8 in
Bluetooth Compatibility
No
Accuracy Margin Distance (Horizontal)
33 ft
Battery Warranty
2 Year
Operating Temperature (F)
14 Degrees Fahrenheit - 104 Degrees Fahrenheit
Effective Range (Visual)
100 ft
Charger Included
Yes
Tripod Thread
1/4 - 20 in
Leveling Function
+/- 4 Degrees Tilt
Automatic Shut-Off
No
Battery Life (Approx.)
8 Hours
Protection Class
IP54
Case Included
Yes
Case Type
Blow-Molded Hard Case
Accuracy Margin (Vertical)
+/- 1/8 in
Effective Range (Receiver)
165 ft
Compatible Batteries
REDLITHIUM USB
Accuracy
+/- 1/8 in
Battery Amp Hour
3 Ah
Voltage
4V
Laser Color
Green
Laser Diode
510 - 530 nm
Laser Class
Class II
Accuracy Margin Distance (Vertical)
33 ft
Length
6 in.
Width
3.5 in.
Height
5 in.
Weight
2.2 lbs.
Warranty Term
2 Year

Reviews :

Q & A :

Warranty:

TEST & MEASUREMENT PRODUCT – FIVE YEAR LIMITED WARRANTY MILWAUKEE Test & Measurement Product (including bare tool, battery pack(s) and battery charger) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years* after the date of purchase. Return of the Test & Measurement tool to the nearest Milwaukee Electric Tool Corporation - factory Service Center, freight prepaid and insured is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

*The warranty period for the LITHIUM-ION battery pack that ships with Test & Measurement Product is two (2) years from the date of purchase. *Alkaline battery that ships with Test & Measurement Product is separately warranted by the battery manufacture.

*The warranty period for a Non-Contact Voltage Detector – 2201-20 or Plumb 2-Beam Plumb Laser – 2230-20is one (1) year from the date of purchase. Warranty Registration is not necessary to obtain the applicable warranty onMILWAUKEE product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to productsold in the U.S.A. and Canada only.

MILWAUKEE 2201-20 Non-Contact Voltage Detector or Plumb 2-Beam Plumb Laser – 2230-20 is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of one (1) year after* the date of purchase. Return of the Voltage Detector or Plumb Laser tool to the nearest Milwaukee Electric Tool Corporation - factory Service Center, freight prepaid and insured is required. A copy of the proof of purchase should be included with the return product. *Alkaline battery that ships with Test & Measurement Product is separately warranted by the battery manufacture. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

Warranty Registration is not necessary to obtain the applicable warranty on MILWAUKEE product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only.
