Product Features & specs :

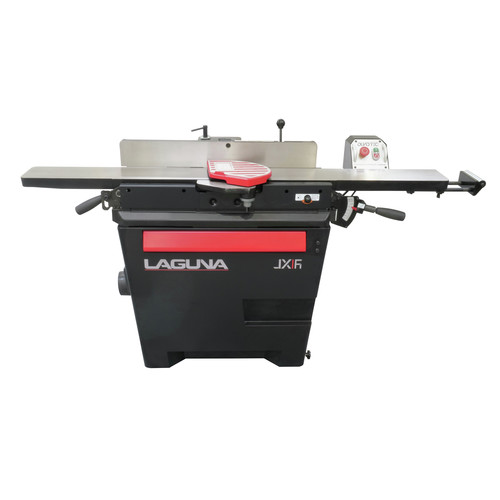

Laguna Tools 506601 JX6 QuadTec I 110V 13 Amp 1.5 HP 1-Phase Jointer

Details
All-new for 2021, the Laguna JX6 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable.
Features:
  • Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
  • Emergency "Knee-Stop" - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
  • New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a "toe-kick" to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
  • In-feed Support Roller - Infeed tables are now fitted with pull out support roller to help support longer materials
  • QuadTec I Cutterhead - The all-new QuadTec I cuttherhead comes as standard equipment on the new JX-6. The QuadTec I produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec I uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
  • Built-In Wheels - No need to purchase a separate mobility kit
  • Cast-Iron Tables and Fence
What’s Included:
  • JX6 QuadTec I 110V 13 Amp 1.5 HP 1-Phase Jointer - 506601
Power Source
Corded
Fence Length
29 in
Amperage
13
CSA Safety
Yes
Wifi compatibility
No
Fence Height
3.75 in
Dust Port Size
4 in
Bluetooth Compatibility
No
Cutterhead Speed (RPM)
5500
Rabbeting Capacity
1/2 in
Table Height
31 in
Motor Phase
1
Horsepower
1.5
Voltage
110V
Cutterhead Diameter
2-1/2 in
Max. Cut Capacity (Depth)
1/8 in
Dust Port
Yes
Length
63 in.
Width
22 in.
Height
31 in.
Weight
161 lbs.
