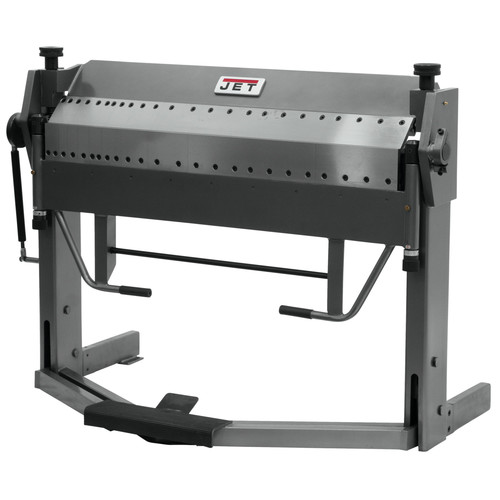

JET PBF-1650D 16 Gauge x 50 in. Dual-Sided Box and Pan

JET Model: jetn752130
ratings        (0) Write The First Review

Want an email when this item is in stock?

OUT OF STOCK
CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to Lead, which is known to the State of California to cause Cancer and Birth Defect/Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
JET PBF-1650D 16 Gauge x 50 in. Dual-Sided Box and Pan JET Model: jetn752130

Product Features & specs :

JET PBF-1650D 16 Gauge x 50 in. Dual-Sided Box and Pan

Details
Achieve bending precision and versatility along with rugged durability. The dual-sided box and pan brake adapts to a wide range of applications. Easily add and remove upper and lower fingers for multiple bends. The JET-exclusive graduated scale on each side improves accuracy when setting lower beam parallelism.
Features:
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Hardened and ground fingers
  • Rubber stops on rear of lower arm to prevent contact with support frame
  • Non-skid foot pedal
  • Set lower beam parallelism more accurately with graduated scale on each side
  • Removable upper fingers and on the apron for greater versatility in making custom bends
  • Repeat bends are easy with a quick turn of the stop collar on the stop rod
  • Hydraulic spring to assist in raising the apron reduces strain on the operator
  • Large easy to use foot clamp allows the operator hands free clamping
What’s Included:
Width of Fingers
1 in / 1-1/8 in / 1-3/8 in / 1-1/2 in / 1-3/4 in / 2 in / 3 in / 4 in / 6 in / 7-3/4 in / 10 in / 10-5/8 in
Finger Nose Angle
45 Degrees
Bending Capacity (Length)
50 in
No. of Fingers
1
Box Depth (Max.)
2-1/2 in
Capacity (Mild Steel)
16 ga
Length
67.38 in.
Width
28 in.
Height
51.50 in.
Weight
849 lbs.
Warranty Term
2 Year
