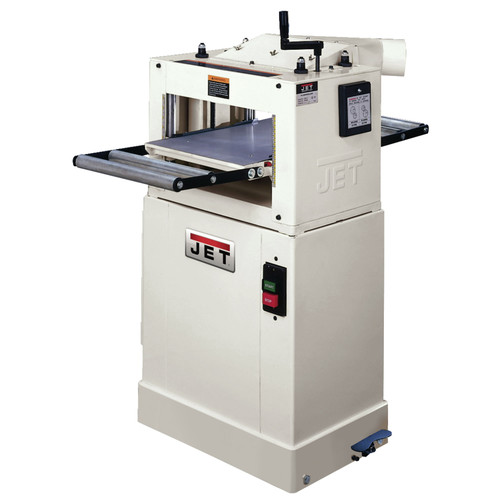

JET JPM-13CS 13 in. Closed Stand Planer/Molder Combination Machine

Model: jetn708524
ratings        (6) Write A Review
Price reduced from $1,298.69 to Save 15% $1,104.99

FREE JET Charcoal Grill (via Mail-in Rebate) on JET product purchases $350 or more! See Details

Up to 15% off JET Woodworking Equipment! Price reflects discount See Details

free shipping
This item qualifies for
FREE SHIPPING
free shipping
This item ships directly from manufacturer
alert warning icon

OR PAY WITH

CA Residents
Prop 65 Warning
compliance warning icon
WARNING: This product can expose you to chemicals including Lead, a chemical known to the State of California to cause Cancer and Birth Defect/Reproductive Harm and Titanium Dioxide, a chemical known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.
JET JPM-13CS 13 in. Closed Stand Planer/Molder Combination Machine Model: jetn708524
price for vip customer
Price reduced from $1,298.69 to Save 15% $1,104.99

OR PAY WITH

Product Features & specs :

JET JPM-13CS 13 in. Closed Stand Planer/Molder Combination Machine

Details Features:
  • Cast iron table and base provide strength and reduce vibration during use
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Three cutter head design produces a superior finish in either application
  • Molding cutter head accommodates over 40 standard molding cutter sets, most 2 in. or smaller heads can be installed without removing the planing knives to save you setup time
  • Two speed gear box has feed rates set for optimum planing and molding results
  • In feed and out feed rollers are adjustable and rubber-coated to support your work piece without marring the wood
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Totally enclosed fan-cooled 1-1/2 HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
  • Exclusive angled 4 in. dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Built-in lockable casters add support and stability to the machine while in use
What’s Included:
  • 13 in. Closed Stand Planer/Molder Combination Machine - 708524
  • Knife Setting Gauge for Planing
  • Knife Setting Gauge for Molding
  • Adjustment Tools
Power Source
Corded
No. of Knives
3
Knife Width
0.13 in
PreWired Voltage
115V
Amperage
7.5 / 15
UL Safety
Yes
Knife Thickness
0.63 in
Feed Rate - Planing (FPM)
10
Feed Rate - Moulding (FPM)
20
CSA Safety
No
Wifi compatibility
No
No-Load Speed (CPM)
13500
Material Thickness (Max.)Material Length (Min.)
6-1/8 in, 14 in
Knife Length
13.06 in
Bluetooth Compatibility
No
Cutterhead Speed (RPM)
4500
Motor Phase
1
Horsepower
1.5
Planing Depth (Max.)
1/16 in
Voltage
115V/230V
Motor Type
Brushed
Cutterhead Diameter
2-9/16 in
Bench-Top
No
Planing Width (Max.)
13 in
Dust Port
Yes
ETL Safety
No
Length
55 in.
Width
29.5 in.
Height
39.5 in.
Weight
500 lbs.
Warranty Term
5 Year

Reviews :

4.5 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
3
0
0
0
Would you recommend this product?
Yes (5)
Pros
Easy To Use (5)
Powerful (4)
Relatively quiet and powerful
Excellent power vs. my orange lunchbox planer and the best part according to my wife is its about 1/3rd the noise output where she is above my basement shop! That alone made it worth the higher cost.

Once I got it down the stairs setup only took a bit over 1 hour. I did need to upgrade the wiring but, no big deal. Operationally, no snipe, plenty of power and clean cuts in white oak; before giving 5 stars I'll need to see how the blades last and how hard/easy knife changes are.

I'm glad I made the purchase, my wife is even happier!
July 20, 2017
Would you recommend this product?
Yes
Pros
Easy To Use
Too soon to tell.
Haven't had it long enough to be totally sure of the quality and reliability of this machine. However, the amount I have used it, it has performed quite well. It does a nice job of planing, leaving a nice planed finish. Haven't used it for molding yet. I did have a little trouble with the feed rollers slipping a little. Checked the v-belts, they were fine. Adjusted the roller height etc. Tech support was little help.
December 28, 2012
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Great cabinet planer at a good price
I bought this product to use for making furniture and cabinets. Unit came nearly completely assembled and required less than a hour to get it running. First cuts a trial piece of hard maple had two parallel "tracks' running length of board. Called tech service and they diagnosed problem as defects in knives. They sent me a new set and after a couple of hours of installation and setup the planner works very well. Note that setting knives is not easy, significant care is required to get them all set evenly. I still have a bit of snipe on lead end but assume that I can eliminate it with correct infeed/outfeed roller adjustment. Other than this, if you take small cuts the resulting surface finish on hardwood is beautiful. Other comments: The machine has plenty of power, it definitely needs a good dust collector or it will back up with chips, and the built-in mobile base works very well. Glad I bought it, I expect to get lots of use out of it.
December 13, 2012
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
I would certainly buy this product again
I needed a planer and shaper. This machine does both very well and is much safer to use than a shaper alone. The planed surface needs no sanding; smoother than a babies butt. The material I use is hard,seasoned red oak. This machine requires the use of a dust suction and collection system because too many shavings are produced for a shop vac to handle.
May 27, 2012
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Big step up from Bench Top
Big planer power at 110 volt. Great in a home shop. Good chip evacuation with Dust Collector *a must*. Easy to move and store when not in use. Has done everything I have asked of it, without a problem.
October 16, 2011
Would you recommend this product?
Yes
Pros
Easy To Use
Powerful
Outstanding
Great machine.

Q & A :

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 5 answers
WHERE CAN I GET THE KNIVES SHARPENED,OR BUY THEM?
SPUDOODLE on Dec 17, 2015
BEST ANSWER: The model number of the blades is: 708366. To submit an order, please visit www.cpooutlets.com
What is the floor space it will take up?
Buzz on Nov 22, 2015
BEST ANSWER: The overall dimensions are as follows:. 23-31/32"W
x 36-1/2"D x 43-1/2"H
Can I use a molding knife from a wood waster in the jet
Tom on Oct 4, 2014
BEST ANSWER: Your question will be best answered by the manufacturer, who can more accurately provide technical support. Please call Jet directly at 888-804-7129. You can also reach them at www.jettools.com

Warranty:

JET RED ASSURANCE Program


Do you know about the JET RED ASSURANCE Program? Well, the JET RED ASSURANCE Program was designed to make sure you do! JET has the best and most dependable service in the Industry and they want to make sure you know about it. In addition, to their standard warranty JET offers the Industry's most dependable service and support guarantee. Click here to learn more about what JET RED ASSURANCE can do for you!


5-Year

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area, call 1-800-274-6848.

MORE INFORMATION
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WARRANTY

This JET product carries a limited five-year warranty.

WHAT IS COVERED
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools, abrasives and other consumables are excluded from warranty coverage.

WHO IS COVERED
This warranty covers only the initial purchaser of the product.

WHAT IS THE PERIOD OF COVERAGE
The general JET warranty lasts for the time period specified in the product literature of each product.

WHAT IS NOT COVERED
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.

HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be responsible for the handling and shipping costs of the return.

HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
