JET 323230 GHB-1236 Geared Head Bench Lathe with 200S DRO JET Model: jetn323230
price for vip customer
Price reduced from $11,359.00 to Save 10% $10,223.10

OR PAY WITH

Product Features & specs :

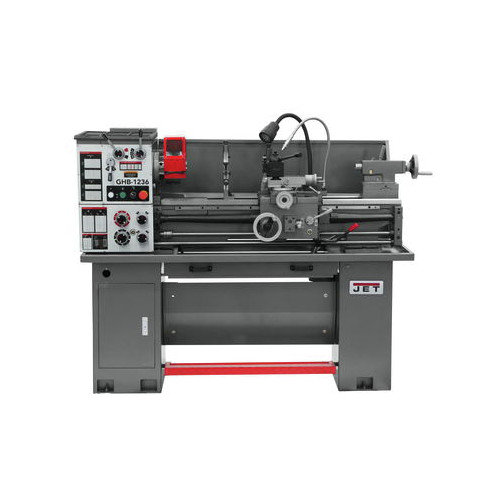

JET 323230 GHB-1236 Geared Head Bench Lathe with 200S DRO

Details
This new JET GHB-1236 Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GHB-1236 features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability.
Features:
  • Precision spindle roller bearings
  • High quality steel hardened gears in headstock
  • Lead screw cover
  • Cast iron stand
  • Foot Brake comes standard
  • Emergency Stop within easy reach of the Operator
  • Chuck Guard
  • Mounted on stand with foot pedal, coolant and ready to use
What’s Included:
  • GHB-1236 Geared Head Bench Lathe with 200S DRO-JETN323230
Spindle Speed Settings
9
Power Source
Corded
Range of Inch Threads (TPI)
4 - 60
Spindle Bore Diameter
1-23/40 in
PreWired Voltage
230V
UL Safety
No
Range of Cross Feeds (IPR)
0.0014 - 0.0116
Swing Range (Gap)
18 in
CSA Safety
No
Distance Between Centers
33 in
Bed Width
7-6/50 in
Tool Size
3/4 x 3/4 in
Swing Range (Cross Slide)
7-1/2 in
No. of Inch Threads
36
Motor Phase
1
Range of Longitudinal Feed Rates (IPR)
0.0019-0.0472 in
Bed Construction
Cast Iron
Spindle Taper (Tailstock)
MT-3
Cross Slide Travel
5-1/2 in
Horsepower
2
Motor Type
Brushed
Voltage
230V
Spindle Mount Taper
Yes
Carriage Travel
27-3/8 in
Spindle Speed Range (RPM)
1400
Compound Slide Travel
3 in
Range of Metric Threads
0.4 - 7
Spindle Travel (Tailstock)
3-1/2 in
Steady Rest Capacity
5/16 in - 2-15/16 in
No. of Metric Threads
32
Drive Type
Geared Head Clutch
Follow Rest Capcacity
2-3/16 in
No. of Longitudinal Feed Rates
48
No. of Cross Feed Rates
36
Swing Range (Bed)
12 in
ETL Safety
No
Spindle Mount
Yes
Length
66.14 in.
Width
29.53 in.
Height
57.48 in.
Weight
1210 lbs.
Warranty Term
2 Year
